Specification
CBB60A TYPE This type capacitor for the cases using have plastic case, metal case; for the sealed ways have insulating cap sealed, plastic cap sealed or epoxy resin sealed; For the connections have lug type, wire type or cable type; For the fixed ways have with the bolt and nut or not. The production can be designed and made according to our customer’s special desires.

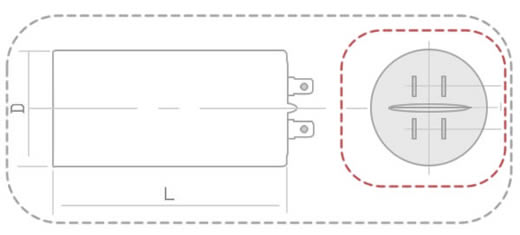

Overall and Installation dimension

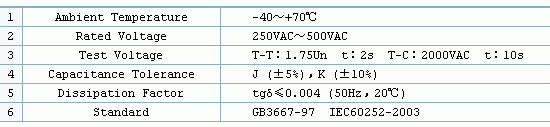

MAIN TECHNICAL DATA

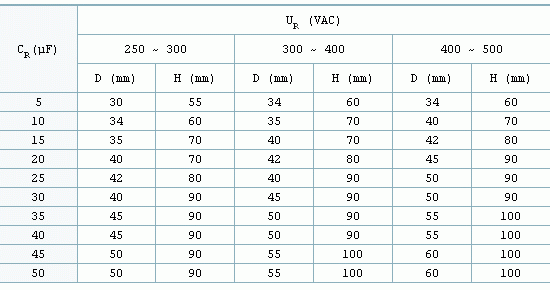

NOMINAL CAPACITANCE, RATED VOLTAGE AND CASE SIZE TABLE
The main sale market of products:China,Africa,Asia,America,Europe and Oceania areas.Specification
