CBB65-2 TYPE   Cylinder, three or four groups of 250 # lugs do leads.

Specification

CBB65-2 TYPE Capacitor for the connections three or four groups of 250 # lugs do leads. Swift to install.

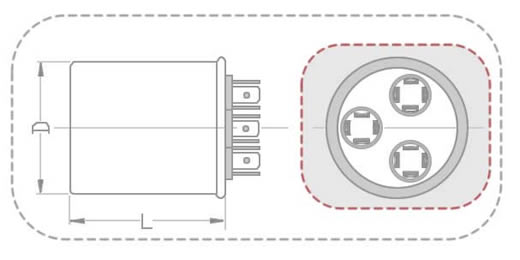

  Overall and Installation dimension

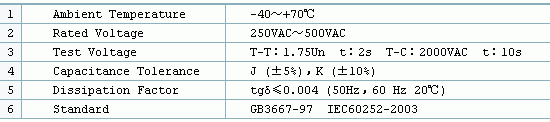

  MAIN TECHNICAL DATA

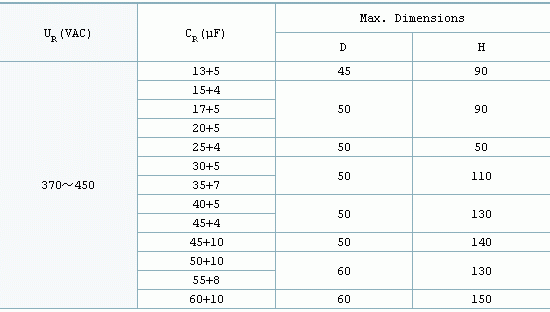

  NOMINAL CAPACITANCE, RATED VOLTAGE AND CASE SIZE TABLE

  The main sale market of the products:China.Asia,America and Europe areas.
