SPP SERIES MOTOR TORQUE MULTIPLIER

  SPP Series motor torque multiplier is comprised of motor start capacitor and PTC thermistor in series. Since a compressor has its inertia and counterforce of high-voltage refrigeration does while starting applying PTC hard technology to supply enough starting time and current in order to start a compressor and realize protective effect for open circuit due to overtime starting. It can also apply to heighten torque of motor at the voltage lower than 90% of rated voltage so as to start the motor of the compressor. The product has the characters, such as high reliability, long life time. It mainly applies to start the heavy duty motors on compressors for refrigeration, heating pump and etc.

Specification

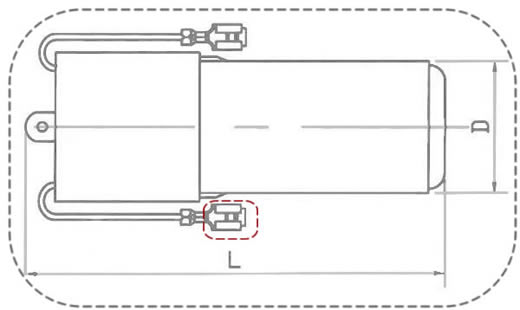

OVERALL AND INSTALLATION DIMENSION

  OVERALL AND INSTALLATION DIMENSION CHART

  MAIN TECHNICAL DATA

  INSTALLATION INSTRUCTION

  Connect the two wires from the FX8E in parallel with the run capacitor (one wire each side) without removing any original wires. Use special “piggy back” terminal of the FX8E if all the run capacitor terminals are being used. For Capacitor Start Induction Run Units see the diagram.
