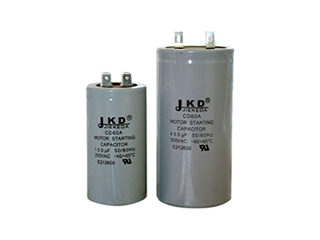

CD60A series products are made of by the aluminium foil bar as the poles, alumina as dielectric, mushy state electrolyte and all of devices in one compact unit which can be sealed separately in aluminium case, bakelite or the ABS case. The connection types are of lug type and wire or cable type and non-polarized. The specific type of capacitors with high electrical characteristics are widely used in single phase A.C. motors with rated voltage of 110V-330V and the frequency of 50Hz - 60Hz to get high rotary torque at low starting current, and also the motor at a lower starting current under high torque.

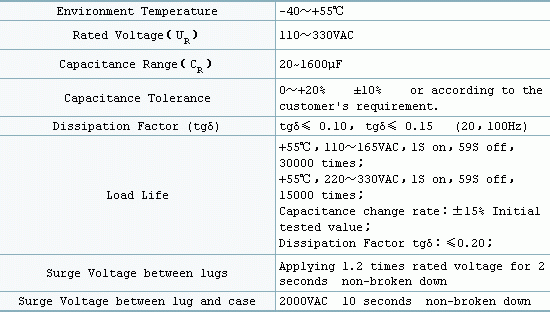

MAIN TECHNICAL DATA

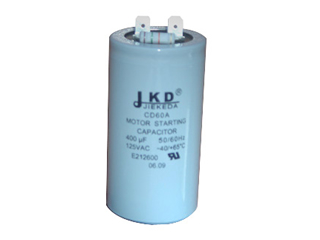

CD60A-1 TYPEBasic types, the standard size products.

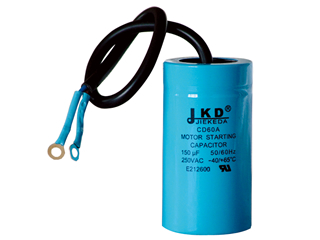

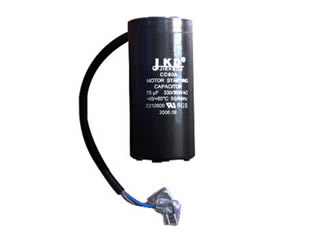

CD60A-2 TYPEIt adopts cable or wire exit on the basic types, increase user terminals designated connector, ease installation。

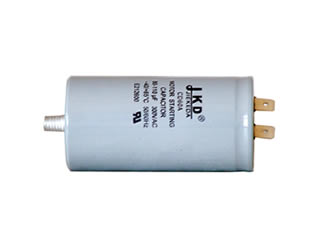

CD60A-3 TYPEInstallation of discharge resistor on the basic types.

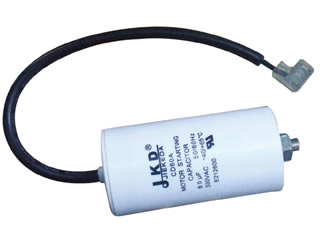

CD60A-4 TYPEBased on the basic type,this type of capacitor adopts leading cable, with M8×16 fixing bolt on the bottom,easy installation.
CD60A-5 TYPEBased on the basic type,this type of capacitor adopts 250# single terminal, with M8×16 fixing bolt on the bottom,easy installation.
CD60A-6 TYPE Based on the basic types,this type of capacitor with aluminum coving plastic case inside,M3 bolt as terminals,easy installation.
CD60A-7 TYPEThis type aluminum electrolytic capacitor adopts in the ABS can special made which is of high grade insulating and good frame.
CD60A-8 TYPEThis type aluminum electrolytic capacitor adopts polypropylene case. This type of capacitor is of best insulation and sealed, good frame, easy for use.

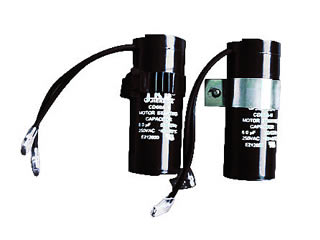

CD60A-9 TYPEThis type aluminum electrolytic capacitor in black ABS case with clip be fitted leading cable with 250# plug. easy installation.
